Toy recurrent network learning logical gates
Main
gradnetconcepts demonstrated below
Discrete dynamical loss
Directed networks
Training on toy data
Problem setup
Short circuit-style networks trained with GradNet’s built-in trainer. We allow positive/negative edges and rely on leaky-ReLU dynamics plus a bias node to fit XOR.
Install
install the required dependencies silently
%%capture
!pip install 'gradnet[examples]'
Imports and helpers
import torch
import torch.nn.functional as F
import matplotlib.pyplot as plt
from matplotlib.colors import TwoSlopeNorm
from gradnet import GradNet, fit
from gradnet.utils import plot_adjacency_heatmap, random_seed
random_seed(3)
Truth tables and directed network
Layout: A, B, H, OUT. The initial state loads the two inputs and zeros elsewhere. We unroll state = relu(A @ state) for a few rounds and read the last node as the output. No clamping or masks beyond the zero diagonal from GradNet defaults.
device = torch.device("cpu")
inputs = torch.tensor([[0.,0.],[0.,1.],[1.,0.],[1.,1.]], device=device)
gate_targets = {
"AND": inputs.new_tensor([0.,0.,0.,1.]),
"OR": inputs.new_tensor([0.,1.,1.,1.]),
"XOR": inputs.new_tensor([0.,1.,1.,0.]),
}
# Layout: A, B, H, OUT
num_nodes = 4
input_idx = (0, 1)
output_idx = num_nodes - 1
num_rounds = 2
budget = 11
Propagation, loss, and training via fit
Unroll state = tanh(A @ state) for num_rounds starting from the input-loaded state; the output is the last node passed through a sigmoid and BCE loss. No clamping beyond the initial state.
def propagate(A, x, rounds=num_rounds):
# Initialize all nodes to zero, then inject input values at input nodes
state = torch.zeros(num_nodes, device=A.device, dtype=A.dtype)
state[list(input_idx)] = x
# Unroll the recurrence: state = tanh(A @ state)
for _ in range(rounds):
state = torch.tanh(A @ state)
return state[output_idx] # return the output node's activation
def gate_loss(gn, targets):
A = gn() # get current adjacency matrix
preds = torch.stack([propagate(A, x) for x in inputs]) # run all 4 input combos
loss = F.mse_loss(preds, targets)
acc = ((preds > 0.5) == (targets > 0.5)).float().mean()
return loss, {"acc": acc}
def train_gate(name, targets, num_updates=2000, lr=0.01):
# Fresh GradNet: directed, free-sign edges, near-zero init, soft budget
gn = GradNet(
num_nodes=num_nodes,
budget=budget,
directed=True,
delta_sign="free",
rand_init_weights=1e-9,
strict_budget=False,
)
fit(
gn=gn,
loss_fn=lambda g: gate_loss(g, targets),
num_updates=num_updates,
optim_cls=torch.optim.Adam,
optim_kwargs={"lr": lr},
logger=False,
accelerator="cpu",
)
with torch.no_grad():
A = gn()
preds = torch.stack([propagate(A, x) for x in inputs]).cpu()
return gn, A.detach().cpu(), preds, targets.detach().cpu()
Train AND, OR, and XOR
gate_results = {}
for name, targets in gate_targets.items():
print(f"Training {name} gate")
gn, adj, preds, tgts = train_gate(name, targets)
gate_results[name] = {"model": gn, "adj": adj, "preds": preds, "targets": tgts}
GPU available: True (mps), used: False
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
Training AND gate
| Name | Type | Params | Mode
-----------------------------------------
0 | gn | GradNet | 16 | train
-----------------------------------------
16 Trainable params
0 Non-trainable params
16 Total params
0.000 Total estimated model params size (MB)
`Trainer.fit` stopped: `max_epochs=2000` reached.
GPU available: True (mps), used: False
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
Training OR gate
| Name | Type | Params | Mode
-----------------------------------------
0 | gn | GradNet | 16 | train
-----------------------------------------
16 Trainable params
0 Non-trainable params
16 Total params
0.000 Total estimated model params size (MB)
`Trainer.fit` stopped: `max_epochs=2000` reached.
GPU available: True (mps), used: False
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
Training XOR gate
| Name | Type | Params | Mode
-----------------------------------------
0 | gn | GradNet | 16 | train
-----------------------------------------
16 Trainable params
0 Non-trainable params
16 Total params
0.000 Total estimated model params size (MB)
`Trainer.fit` stopped: `max_epochs=2000` reached.
Check truth tables after training
for name, res in gate_results.items():
print(f"{name} gate outputs")
for combo, pred, target in zip(inputs.cpu().tolist(), res["preds"], res["targets"]):
bits = [int(v) for v in combo]
print(f"{bits} -> pred={pred.item():.3f} (binary {int(pred > 0.5)}), target={int(target.item())}")
AND gate outputs
[0, 0] -> pred=0.000 (binary 0), target=0
[0, 1] -> pred=0.013 (binary 0), target=0
[1, 0] -> pred=0.013 (binary 0), target=0
[1, 1] -> pred=0.900 (binary 1), target=1
OR gate outputs
[0, 0] -> pred=0.000 (binary 0), target=0
[0, 1] -> pred=0.994 (binary 1), target=1
[1, 0] -> pred=0.996 (binary 1), target=1
[1, 1] -> pred=1.000 (binary 1), target=1
XOR gate outputs
[0, 0] -> pred=0.000 (binary 0), target=0
[0, 1] -> pred=0.813 (binary 1), target=1
[1, 0] -> pred=0.813 (binary 1), target=1
[1, 1] -> pred=0.096 (binary 0), target=0

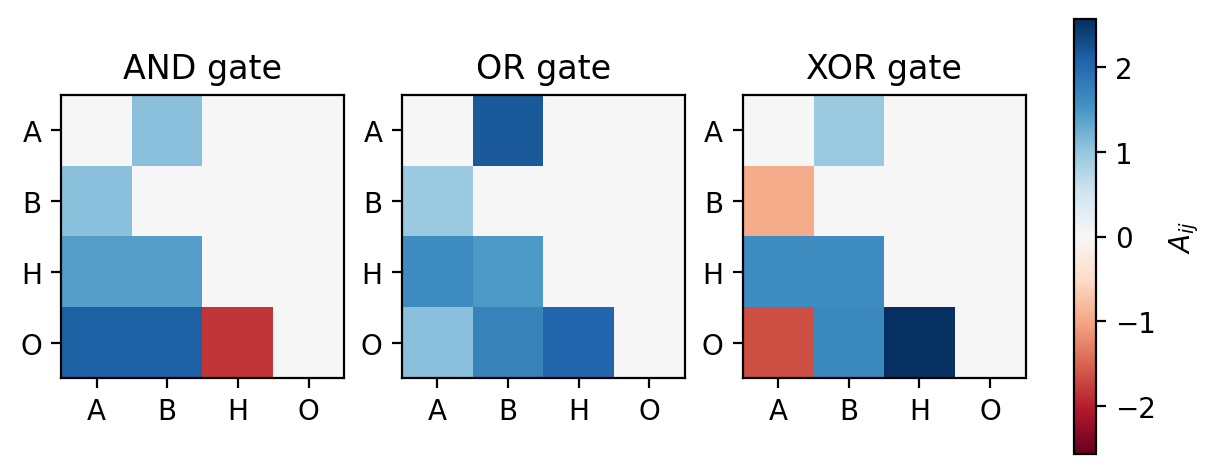

Plot the adjacencies
abs_max = max(float(res["adj"].abs().max()) for res in gate_results.values())
abs_max = max(abs_max, 1e-6)
norm = TwoSlopeNorm(vmin=-abs_max, vcenter=0.0, vmax=abs_max)
imshow_kwargs = {"cmap": "RdBu", "norm": norm}
# Node labels for ticks: A, B, hidden(s) as H/H1..., and O for output
hidden_counter = 0
node_labels = []
for n in range(num_nodes):
if n == input_idx[0]:
node_labels.append("A")
elif len(input_idx) > 1 and n == input_idx[1]:
node_labels.append("B")
elif n == output_idx:
node_labels.append("O")
else:
label = "H" if hidden_counter == 0 else f"H{hidden_counter}"
node_labels.append(label)
hidden_counter += 1
fig, axs = plt.subplots(1, 3, figsize=(6, 2.5), dpi=200, constrained_layout=True)
for ax, (name, res) in zip(axs, gate_results.items()):
plot_adjacency_heatmap(res["adj"], ax=ax, title=f"{name} gate", imshow_kwargs=imshow_kwargs, add_colorbar=False)
ax.set_xlabel(None)
ax.set_ylabel(None)
ax.set_xticks(range(num_nodes), node_labels)
ax.set_yticks(range(num_nodes), node_labels)
cbar = fig.colorbar(axs[-1].images[0], ax=axs, location="right", shrink=0.9)
cbar.set_label("$A_{ij}$")
plt.show()

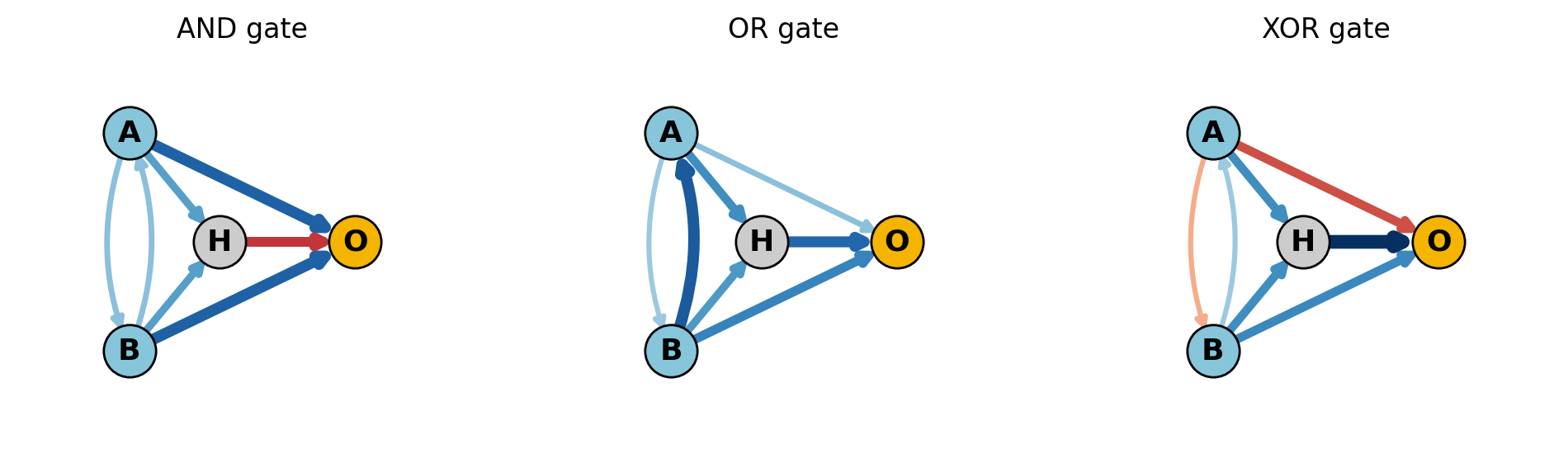

Plot as networks
# Plot each learned gate as a small directed graph
import math
import matplotlib as mpl
# Re-compute a shared scale so widths/colors are comparable across gates
edge_abs_max = max(float(res['adj'].abs().max()) for res in gate_results.values())
edge_abs_max = max(edge_abs_max, 1e-8)
edge_norm = mpl.colors.TwoSlopeNorm(vmin=-edge_abs_max, vcenter=0.0, vmax=edge_abs_max)
edge_cmap = mpl.cm.get_cmap('RdBu') # red = negative, blue = positive
dx = 0.4
dy = 1.6
node_labels = {0: 'A', 1: 'B', output_idx: 'O'}
if num_nodes >= 3:
node_labels.setdefault(2, 'H')
def layout_positions(num_nodes, input_idx, output_idx):
# Inputs stacked on the left (x=0)
inputs = list(input_idx)
y_inputs = [(((len(inputs) - 1) / 2) - i)*dy for i in range(len(inputs))]
positions = {idx: (0.0, y) for idx, y in zip(inputs, y_inputs)}
# Middle layer for all other non-output nodes
mid_nodes = [i for i in range(num_nodes) if i not in inputs and i != output_idx]
if mid_nodes:
y_mid = [(((len(mid_nodes) - 1) / 2) - i)*dy for i in range(len(mid_nodes))]
for idx, y in zip(mid_nodes, y_mid):
positions[idx] = (dx, y)
# Output on the right (x=2) centered relative to current nodes
if positions:
min_y = min(y for _, y in positions.values())
max_y = max(y for _, y in positions.values())
out_y = 0.5 * (min_y + max_y)
else:
out_y = 0.0
positions[output_idx] = (2.5*dx, out_y)
return positions
def draw_gate_graph(name, adj, ax):
adj_np = adj.detach().cpu().numpy()
pos = layout_positions(adj_np.shape[0], input_idx, output_idx)
threshold = 1e-2
curve_rad = 0.20 # clockwise bend for bidirectional pairs
# Draw directed edges j -> i with styling from weight
for i in range(adj_np.shape[0]):
for j in range(adj_np.shape[1]):
w = adj_np[i, j]
if abs(w) < threshold:
continue
(x0, y0), (x1, y1) = pos[j], pos[i]
width = 6.0 * (abs(w) / edge_abs_max)
color = edge_cmap(edge_norm(w))
has_reverse = i != j and abs(adj_np[j, i]) >= threshold
rad = curve_rad if has_reverse else 0.0
ax.annotate(
'',
xy=(x1, y1), xytext=(x0, y0),
arrowprops=dict(
arrowstyle='-|>',
color=color,
lw=width,
alpha=1,
shrinkA=9, shrinkB=9,
connectionstyle=f'arc3,rad={rad}',
),
zorder=1,
)
# Draw nodes on top of edges
for idx, (x, y) in pos.items():
kind = 'input' if idx in input_idx else ('output' if idx == output_idx else 'hidden')
facecolor = {'input': '#86c5da', 'hidden': '#cccccc', 'output': '#f4b400'}[kind]
ax.scatter(x, y, s=520, color=facecolor, edgecolor='k', zorder=2)
label = node_labels.get(idx, f'n{idx}')
ax.text(x, y, label, ha='center', va='center', weight='bold', fontsize=13)
ys = [y for _, y in pos.values()]
y_margin = 0.6 if len(ys) > 1 else 0.4
ax.set_title(f"{name} gate")
ax.set_xlim(-0.5, 2.5*dx + 0.5)
ax.set_ylim(min(ys) - y_margin, max(ys) + y_margin)
ax.axis('off')
fig, axes = plt.subplots(1, len(gate_results), figsize=(4 * len(gate_results), 3), dpi=200)
if len(gate_results) == 1:
axes = [axes]
for ax, (name, res) in zip(axes, gate_results.items()):
draw_gate_graph(name, res['adj'], ax)
plt.show()
/var/folders/72/79vqt54j447byqmvb80g_n3w0000gn/T/ipykernel_96387/3576067285.py:9: MatplotlibDeprecationWarning: The get_cmap function was deprecated in Matplotlib 3.7 and will be removed two minor releases later. Use ``matplotlib.colormaps[name]`` or ``matplotlib.colormaps.get_cmap(obj)`` instead.
edge_cmap = mpl.cm.get_cmap('RdBu') # red = negative, blue = positive
